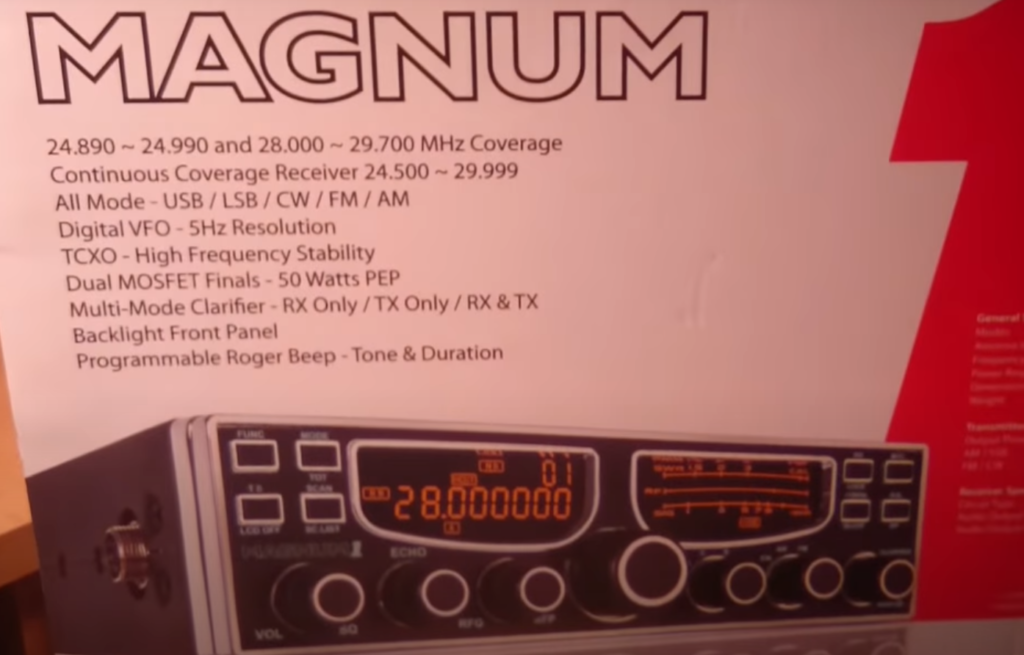

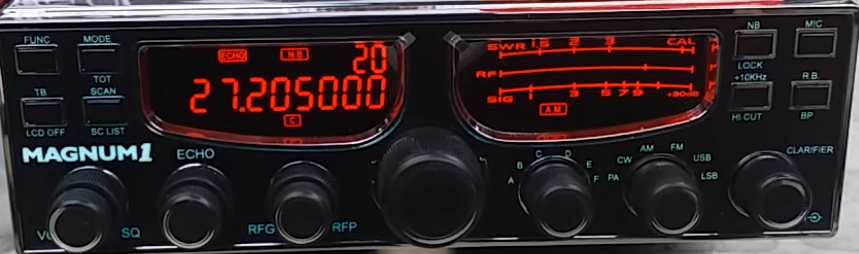

Magnum is een merk wat we in Nederland niet zoveel tegenkomen. Waarschijnlijk omdat de setjes redelijk aan de prijs zijn. Maar toch is de Magnum 1 wel een leuke transceiver. Met 2 displays en voorzien van FM/AM/SSB. Ook het vermogen is toereikend en met 50 watt pep heb je genoeg power om een verbinding te maken. Hieronder de specs.

  • 24.890 ~ 24.990 and 28.000 ~ 29.700 MHz Coverage Continuous Coverage Receiver 24.500 ~ 29.999.
  • All Mode – AM / FM / USB / LSB / CW / PA.
  • 50 Watts PEP Output Power /  Dual ERF2030 MOSFET Finals  / Variable RF Power Out.
  • Temperature Compensated Crystal Oscillator (TCXO)   /  Rock Solid Frequency Stability  / 20 Times More Stable than XO.
  • Digital VFO – 5Hz Resolution.
  • Digital Echo Volume & Delay and Variable Talk Back.
  • Programmable Roger Beep – Tone & Duration.
  • EL Backlight Front Panel.
  • RX Audio Tone Control (Hi-Cut).
  • 3-Button Stock Microphone – Up/Down/ASQ.
  • Large Digital S/RF/SWR Meter.
  • Real-Time SWR Meter – Continual Reading.
  • Multi-Mode Clari_er – RX Only / TX Only / RX & TX.
  • Frequency Scan – Squelch & Time Operated.
  • Noise Blanker.
  • Automatic Squelch (ASQ).
  • PA Mode with Volume Control.
  • Frequency Coverage : Transmit and Receive …………. 24.890~24.990 & 28.000~29.699 MHz.
  • After modification A: 26.065 ~ 26.505 MHz / B: 26.515 ~ 26.955 MHz / C: 26.965 ~ 27.405 MHz (CB Channels 1 ~ 40) / D: 27.415 ~ 27.855 MHz / E: 27.865 ~ 28.305 MHz
  • Antenna Impedance : 50 ohm, unbalanced.
  • Frequency Control : Digital Phase-Lock Loop (PLL) Synthesizer.
  • Frequency Tolerance : 0.005%.
  • Frequency Stability : 0.001%.
  • Temperature Range : -30 to +50 Degree C.
  • Power Requirement : 12 – 13.8 V DC, Negative Ground.
  • Current Consumption : 9 Amps Maximum.
  • Dimensions  (WxHxD) : 19.7 x 5.7 x 27.3 cm (7.75 x 2.25 x 10.75 in)
  • Weight : 1995 gram (4.4 lbs.)
  • Power Output :   SSB: 50 Watts  /  FM/CW: 20 Watts  / AM: 1-10 Watts Average   50 Watts PEP.
  • Tuning Steps : 5 Hz / 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz.
  • Final Transistor : ERF2030 (x2).
  • Spurious Emissions : More than 50 dB below Peak Output Power.
  • Carrier Suppression : More than 55 dB below Peak Output Power.
  • Unwanted Sideband : More than 50 dB below Peak Output (1 kHz tone).
  • FM Deviation : +/- 2 kHz Maximum.
  • Audio Response : More than 30dB below Peak Output.
  • Frequency Response : 300 to 3000 Hz.
  • Microphone Impedance : ECM, 2.2K ohms.

Het is geen goedkope radio, maar wel voorzien van alle toeters en bellen
